VPG Revere 5123 Alloy Steel, Single-Ended Beam Load Cell

$0.00

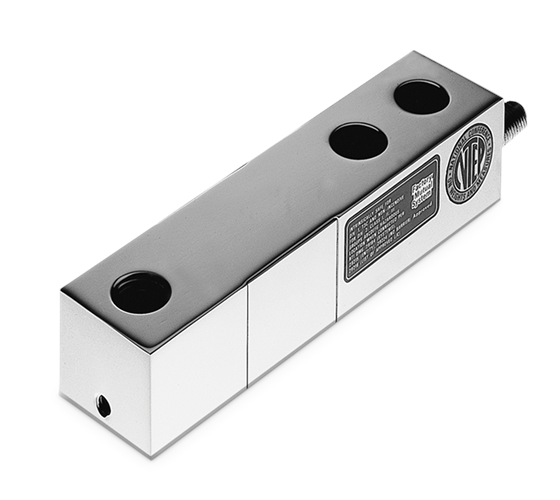

Low-cost, high performance, single-ended beam designed for low-profile scales and process weighing in both Legal for Trade and non-Legal for Trade applications. Capacities range from 1,000 lb to 10,000 lb (453.6 kg to 4,535.9 kg). Complete with 20 ft (6.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
352 (± 3) ohm

Input Resistance:
350 (± 7) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.025% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohms

Deflection at Capacity:
1,000 lb=0.016 in (0.4 mm)
2,500 lb=0.03 in (0.8 mm)
4,000 lb=0.04 in (1.0 mm)
5,000 lb=0.035 in (0.9 mm)
10,000 lb=0.042 in (1.1 mm)

Cable Length:
20 ft (6.1 m)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

21516 Load Cell,SEB 5123-A5-1K- 20P1 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 RTI
21517 Load Cell,SEB 5123-A5- 2.5K-20P1 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 RTI
21518 Load Cell,SEB 5123-A5-4K- 20P1 4000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 RTI
21519 Load Cell,SEB 5123-A5-5K 20P1 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 RTI
21520 Load Cell,SEB 5123-A5-10K -20P1 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 RTI
