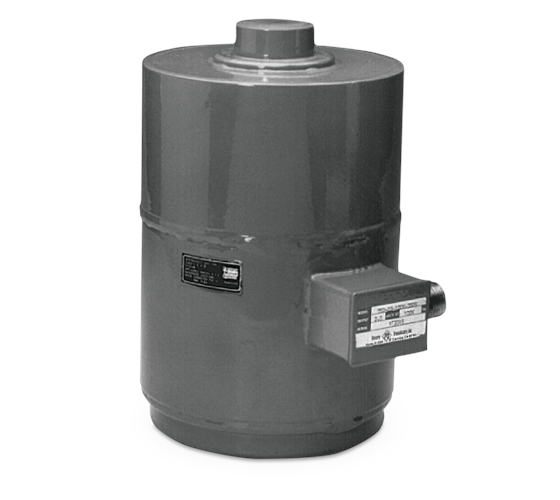

VPG Revere 792 Stainless Steel, Compression Canister Load Cell

$0.00

Single-column design with low deflection and welded-seal for trouble-free operation. High-alloy steel, epoxy coated for trouble-free use in harsh environments. Capacities range from 50,000 lb to 200,000 lb (22,679.6 kg to 90,718.5 kg). Compact and rugged.

Download product PDF
Categories: ,

Models

31307 Load Cell,CSR 792-B10-50k -35P5 50,000lb 35ft RTI 2mV/V 350 OHM EW NTEP IIIL 10 M FM SST WS IP68
31306 Load Cell,CSR 792-B10-100 K-35P5 100,000lb 35ft RTI 2mV/V 350 OHM EW NTEP IIIL 10 M FM SST WS IP68
31305 Load Cell,CSR 792-B10-200 K-35P5 200,000lb 35ft RTI 2mV/V 350 OHM EW NTEP IIIL 10 M FM SST WS IP68
