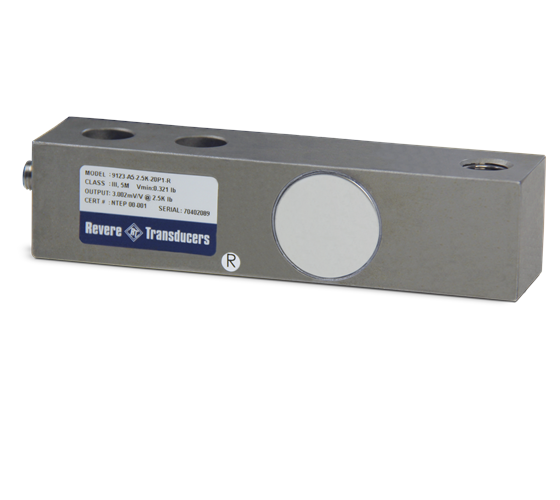

VPG Revere 9123 Stainless Steel, Single-ended Beam Load Cell

$0.00

Low-cost, high performance, single-ended, stainless steel beam designed for low-profile scales and process weighing in both Legal for Trade and non-Legal for Trade applications. Capacities range from 250 lb to 20,000 lb (113.4 kg to 9,072.0 kg). Complete with 20 ft (6.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
0°F to 150°F (-18°C to 65°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft (6.1 m)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Options

31534 Adapter,Conduit SST 1/4-18 NPT 3/8-24UNF-ZA

Models

69380 Load Cell,SEB 9123-A5-250 250lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST
69381 Load Cell,SEB 9123-A5-500 500lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST
69382 Load Cell,SEB 9123-A5-1K 1000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST
69383 Load Cell,SEB 9123-A5- 2.5k 2500lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST
69384 Load Cell,SEB 9123-A5-4k 4,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST
69385 Load Cell,SEB 9123-A5- 5kSE 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5 M FM IP67 SST
69386 Load Cell,SEB 9123-A5-5K 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST
69387 Load Cell,SEB 9123-A5-10K 10,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST
69388 Load Cell,SEB 9123-A5-15K 15,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST
69389 Load Cell,SEB 9123-A5-20K 20,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 5M FM IP67 SST
