VPG Revere 92 Stainless Steel, Compression Canister Load Cell

$0.00

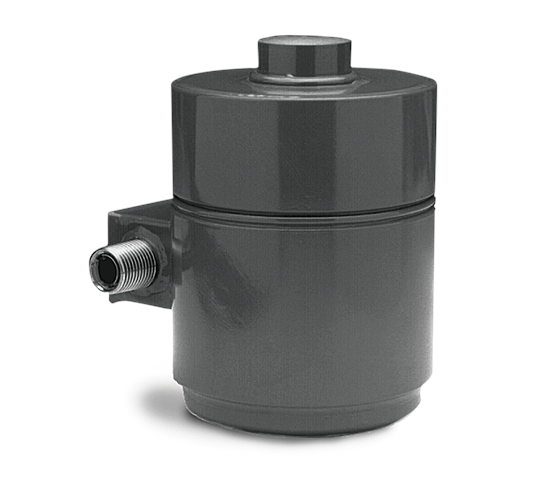

The 92 stainless steel compression canister is a high-profile, high accuracy compression type load cell for truck, tank, track and hopper applications. This compression canister is ideally suited for harsh environments. Capacities are available in 50,000 lb and 100,000 lb pound (22,679.6 kg and 45,359.2 kg) capacities. Each cell comes with 40 feet (12.2 meters) of load cell cable.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel, epoxy coated

Temperature:
Operating range:
0° F to 150° F (-18° C to 65° C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.05% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
50,000 lb=0.004 in (0.102 mm)
100,000 lb=0.006 in (0.152 mm)

Cable Length:
40 ft (12.2 m)

Cable Diameter:
0.295 polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

17642 Load Cell,CSR 92-D3-50K- 10P1 50,000lb 40ft 2mv/v 350 Ohm FM WW IP68 SST WS Comp. RTI
