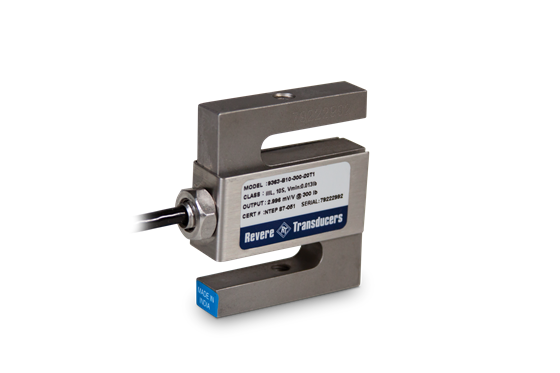

VPG Revere 9363 Stainless Steel, S-Beam Load Cell

$0.00

A stainless steel s-beam type load cell with a compact and economical design. Ideally suited for scale conversions and general-purpose weighing. NTEP Certified capacities range from 100 lb to 10,000 lb (45.4 kg to 4,535.9 kg); non-NTEP Certified capacity of 50 lb, 15,000 lb and 20,000 lb (22.7 kg, 6,804.0 kg and 9,072.0 kg). Complete with 20 ft (6.1 m) of load cell cable. Trimmed outputs makes installation easy.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
390 (± 15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.025% full scale

Non-repeatability:
0.01% full Scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft (6.1 m)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

31317 Load Cell,SBM 9363-B10- 100-20T1 100lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31316 Load Cell,SBM 9363-B10- 200-20T1 200lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31315 Load Cell,SBM 9363-B10- 300-20T1 300lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31314 Load Cell,SBM 9363-B10- 500-20T1 500lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31313 Load Cell,SBM 9363-B10- 750-20T1 750lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31312 Load Cell,SBM 9363-B10- 1k-20T1 1k 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31311 Load Cell,SBM 9363-B10- 1.5k-20T1 1,500lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31310 Load Cell,SBM 9363-B10- 2k-20T1 2,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
98875 Load Cell, SBM 9363-B10- 2.5K-20T1 2,500lb 20ft RTI 3mv/v 350 OHM WW NTEP IIIL 10 S FM SST IP67
31309 Load Cell,SBM 9363-B10- 3k-20T1 3,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31318 Load Cell,SBM 9363-B10- 5k-20T1 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
31308 Load Cell,SBM 9363-B10- 10k-20T1 10,000lb 20ft RTI 3mV/V 350 OHM WW NTEP IIIL 10 S FM SST IP67
