VPG Revere ACB Stainless Steel, Single-ended Beam Load Cell

$0.00

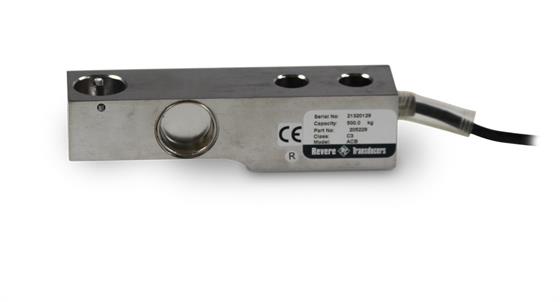

The ACB is a stainless steel, hermetically sealed, single-ended shear beam load cell utilizing a 1,000-ohm bridge. Capacities of the ACB range from 500 kg to 5,000 kg (1,102 lb to 11,020 lb).

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2mV/V

Output Resistance:
1,000 (± 10) ohms

Input Resistance:
1,000 (± 50) ohms

Material/Finish:
Stainless steel

Temperature:
Compensated range
14° F to 104° F (-10° C to 40° C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 12 VDC

Combined Error:
0.02%

Insulation Resistance:
5,000 megohms

Cable Length:
500 kg to 1,000 kg: 3 m
2,000 kg to 5 kg: 6 m

Cable Color Code:
Green +Excitation
Black –Excitation

White +Signal

Red –Signal

Yellow +Sense

Blue –Sense

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

166750 Load Cell,SEB ACB-500kg 3m 2mv/v 1000 Ohm RTI OIML C3 SST WS IP66/68 EW
166751 Load Cell,SEB ACB-1t 3m 2mv/v 1000 Ohm RTI OIML C3 SST WS IP66/68 EW
166752 Load Cell,SEB ACB-2t 6m 2mv/v 1000 Ohm RTI OIML C3 SST WS IP66/68 EW
166753 Load Cell,SEB ACB-5t 6m 2mv/v 1000 Ohm RTI OIML C3 SST WS IP66/68 EW
