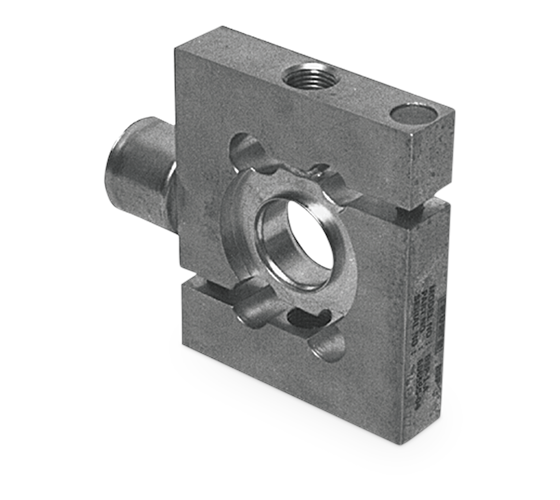

VPG Revere BSP Stainless Steel, S-Beam Load Cell

$0.00

Welded-seal stainless steel s-beam load cell designed for compression and tension. Ideal for scale conversions and general-purpose weighing. NTEP Certified capacities range from 100 lb to 5,000 lb (45.4 kg to 2,268.0 kg); non-NTEP Certified capacity of 10,000 lb (4,535.9 kg). Complete with 30 ft (9.2 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
390 (± 15) ohm

Input Resistance:
390 (± 15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non Repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
30 ft (9.2 m)

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

21447 Load Cell,SBM BSP-B10-100 -30P5 100lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI
21448 Load Cell,SBM BSP-B10-250 -30P5 250lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI
21449 Load Cell,SBM BSP-B10-500 -30P5 500lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI
21450 Load Cell,SBM BSP-B10-1K- 30P5 1000lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI
21451 Load Cell,SBM BSP-B10- 2.5K-30P5 2500 lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW SST WS WS RTI
21452 Load Cell,SBM BSP-B10-5K- 30P5 5000lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI
