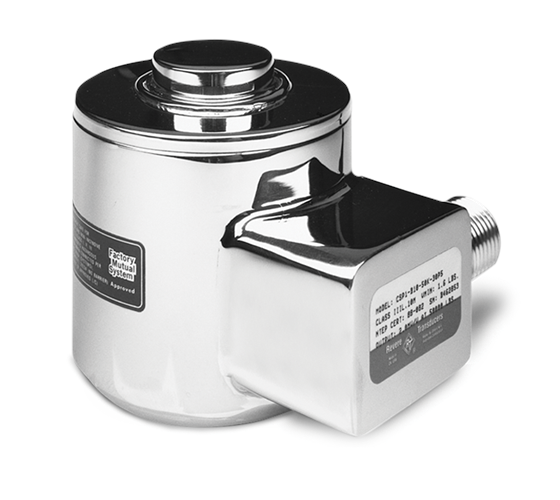

VPG Revere CP Stainless Steel, Compression Canister Load Cell

$0.00

This welded-seal, canister cell is designed for compression service only. High-capacity transducers are built for reliability, durability and extreme precision. Compression Precision (CP) cells are recommended for most industrial applications. Single or dual bridges available for 10,000 lb to 500,000 lb (4,535.9 kg to 226,796.2 kg) capacities. Completed with 30 ft (9.2 m) of load cell cable.

Download product PDF
Categories: ,

Models

17588 Load Cell,CSR CP-D3-10K- 30P5 10,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI
17589 Load Cell,CSR CP-D3-25K- 30P5 25,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI
17590 Load Cell,CSR CP-D3-50K- 30P5 50,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI
17591 Load Cell,CSR CP-D3-100K- 30P5 100,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI
17592 Load Cell,CSR CP-D3-200K- 30P5 200,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI
17593 Load Cell,CSR CP-D3-300K- 30P5 300,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI
17594 Load Cell,CSR CP-D3-500K- 30P5 500,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI
