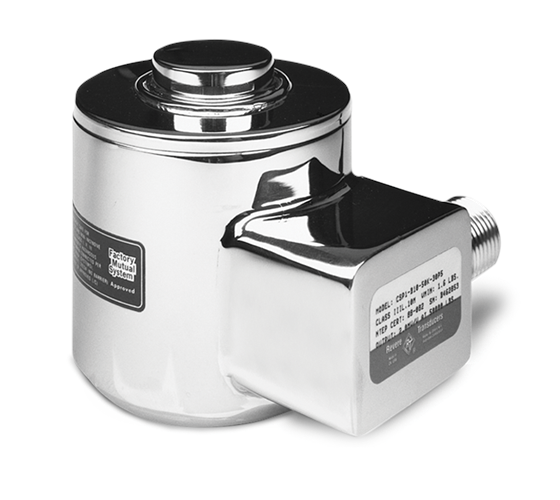

VPG Revere CSP Stainless Steel, Compression Canister Load Cell

$0.00

This welded-seal, stainless steel canister cell is designed for compression service only. High-capacity transducers are built for reliability, durability and extreme precision. Compression Super Precision (CSP) cells are ideal for applications where optimum precision is needed. Single or dual bridges available for 10,000 lb (4,535.9 kg) only. NTEP Certified capacities range from 25,000 lb to 200,000 lb (11,339.8 kg to 90,718.5 kg); non-NTEP Certified capacities range from 10,000 lb to 500,000 lb (4,535.9 kg
to 226,796.2 kg). Complete with 30 ft (9.2 m) of load cell cable.

Download product PDF
Categories: ,

Options

188769 Load Cell, CSR CSP-B10- 200k-60P5 200,000lb 60ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68

Models

21649 Load Cell,CSR CSP-B10-25K -30P5 25,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI
21650 Load Cell,CSR CSP-B10-50K -30P5 50,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI
21651 Load Cell,CSR CSP-B10- 100K-30P5 100,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI
21652 Load Cell,CSR CSP-B10- 200K-30P5 200,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI
