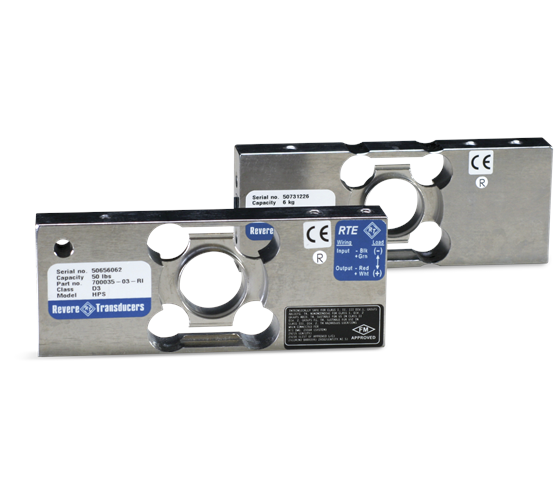

VPG Revere HPS Stainless Steel, Single Point Load Cell

$0.00

The HPS stainless steel, welded-seal, low-profile single-point load cell is designed for bench scale and checkweigher applications in caustic/acidic environments. The HPS is insensitive to off-center loading and tolerates most severe washdowns. Capacities range from 6 kg to 100 kg (13.2 lb to 45.4 kg). This load cell comes complete with 10 feet (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V (25-100 lb)
2.0 mV/V (6 kg)

Output Resistance:
350 (± 7) ohm

Input Resistance:
400 (± 6) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-5 10 VAC/DC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
10 ft (3.1 m)

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

22335 Load Cell,SPT HPS-D3-6kg- 10P5 6kg 10ft 2mv/v 350 Ohm EW IP67 WS Mounting Holes Top and Bottom of Load Cell
116475 Load Cell,SPT HPS-D3-6kg 3m 2mv/v 350 Ohm EW IP67 SST WS 4 Mounting Holes on Face of Cell
17406 Load Cell,SPT HPS-D3-25- 10P5 25lb 10ft 3mv/v 350 Ohm FM EW IP67 SST WS RTI
17407 Load Cell,SPT HPS-D3-50- 10P5 50lb 10ft 3mv/v 350 Ohm FM EW IP67 SST WS RTI
17408 Load Cell,SPT HPS-D3-100- 10P5 100lb 10ft 3mv/v 350 Ohm FM EW IP67 SST WS RTI
