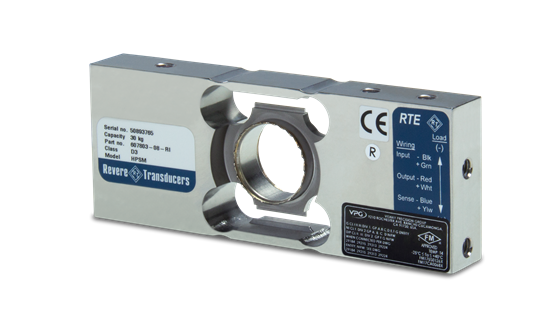

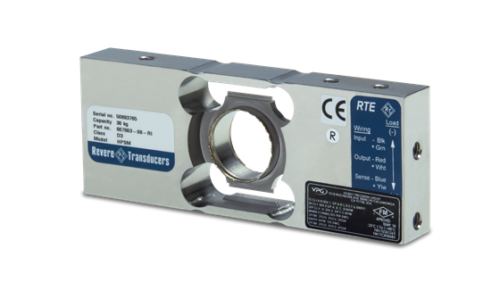

VPG Revere HPSM Stainless Steel, Single Point Load Cell

$0.00

Metric envelope. Low-profile single-point load cell designed for bench scale and checkweigher applications in caustic/acidic environments. Insensitive to off-center loading. Tolerates most severe washdowns. Capacities range from 6 kg to 30kg (13.2 lb to 66.12 lb). Includes 20 ft (6.2 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft (6.2 m)

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

22334 Load Cell,SPT HPSM-D3-6KG -20P9 6kg 20ft 2mv/v 350 Ohm EW IP67 Metric SST WS RTI
109131 Load Cell, SPT HPSM-D3- 12KG-20P9 12kg 20ft 2mv/v 350 Ohm FM EW IP67 Metric SST WS RTI
115336 Load Cell,SPT HPSM-D3- 30KG-20P9 30kg 20ft RTI 2mv/v 350 Ohm Metric EW WS SST FM IP67
