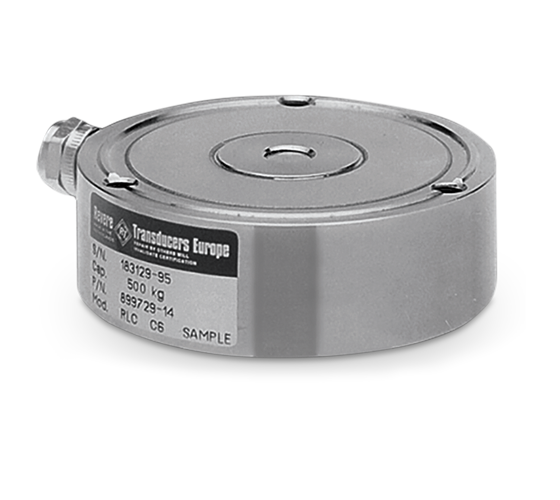

VPG Revere RLC Stainless Steel, Compression Canister Load Cell

$0.00

The RLC is a low profile, high performance ring torsion type load cell in stainless steel. This product is suitable for small and medium platform scales as well as process weighing. Capacities range from .25T to 10T.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
1,025 (± 25) ohm

Input Resistance:
1,110 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
5 m (16.4 ft)

Cable Color Code:
Pink +Excitation
Grey –Excitation
Brown +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
OIML
NTEP

Options

170875 Rocker Pin Set,RLC Mount Replacement rocker pin set 250kg-1 ton. Includes upper cup, pin and grease.
170876 Rocker Pin Set,RLC Mount Replacement rocker pin set 2 ton-5 ton. Includes upper cup, pin and grease.
170877 Rocker Pin Set,RLC Mount Replacement rocker pin set 10 ton. Includes upper cup, pin and grease.

Models

36190 Load Cell,CDK RLC-B10- 0.5t-5MP1 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M
36191 Load Cell,CDK RLC-B10- 1.0t-5MP1 1000kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M
36192 Load Cell,CDK RLC-B10- 2.0t-5MP1 2000kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M
36193 Load Cell,CDK RLC-B10- 3.5t-5MP1 3500kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M
36194 Load Cell,CDK RLC-B10- 5.0t-5MP1 5000kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M
177263 Load Cell,CDK RLC-B10-10t 10000kg 5m RTI 2mv/v 1100 Ohm SST HS IP66/68 NTEP IIIL
