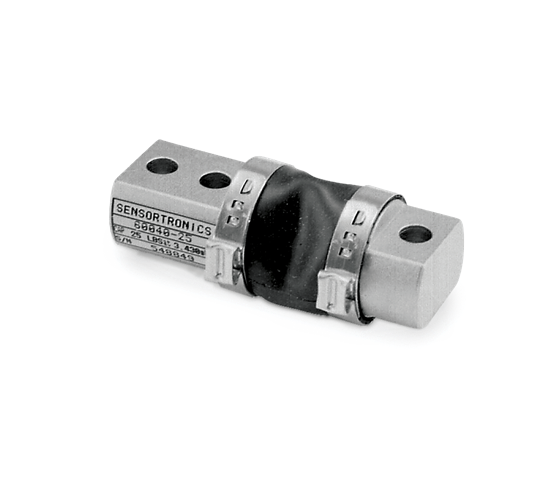

VPG Sensortronics 60040 Alloy Steel, Single-Ended Beam Load Cell

$0.00

Designed for low-profile, single- or multiple-cell weighing applications. Complete with 20 ft (6.1 m) of load cell cable. Nickel plated, high-alloy steel construction, environmentally protected with a neoprene sleeve. Capacities range from 25 lb to 500 lb (11.3 kg to 226.8 kg).

Download product PDF
Categories: ,

Models

17369 Load Cell,CLB 60040-25 25lb 20ft 3mv/v 350 Ohm FM WW IP65 SENSTRS
17370 Load Cell,CLB 60040-50 50lb 20ft 3mv/v 350 Ohm FM WW IP65 SENSTRS
17371 Load Cell,CLB 60040-75 75lb 20ft 3mv/v 350 Ohm FM WW IP65 SENSTRS
17372 Load Cell,CLB 60040-100 100lb 20ft 3mv/v 350 Ohm FM WW IP65 SENSTRS
17373 Load Cell,CLB 60040-150 150lb 20ft 3mv/v 350 Ohm FM WW IP65 SENSTRS
17374 Load Cell,CLB 60040-250 250lb 20ft 3mv/v 350 Ohm FM WW IP65 SENSTRS
17375 Load Cell,CLB 60040-500 500lb 20ft 3mv/v 350 Ohm FM WW IP65 SENSTRS
