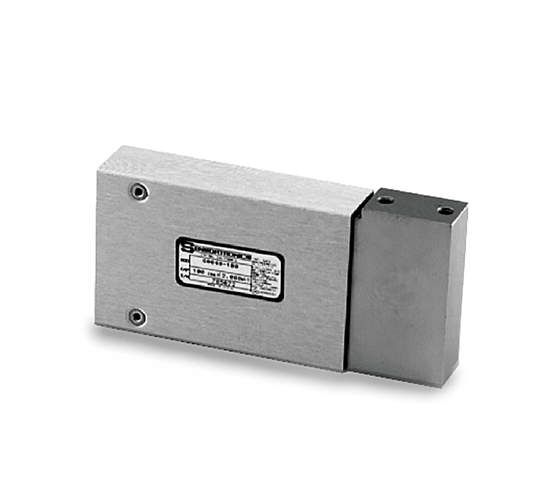

VPG Sensortronics 60048SS Stainless Steel, Single Point Load Cell

$0.00

Load cell specifically designed for heavy-duty, off-center loads on a 20 in x 20 in (508 mm x 508 mm) platform. Stainless steel construction specially designed for washdown situations. Complete with 10 ft (3.1 m) of load cell cable. 1,000 lb (453.6 kg) capacity load cell may be used with 30 in x 30 in (762 mm x 762 mm) platform. Capacities range from 50 lb to 1,000 lb (22.7 kg to 453.6 kg).

Download product PDF
Categories: ,

Models

17421 Load Cell,SPT 60048-50- 0108 50lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17423 Load Cell,SPT 60048-100- 0108 100lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17425 Load Cell,SPT 60048-200- 0108 200lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17427 Load Cell,SPT 60048-400- 0108 400lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17429 Load Cell,SPT 60048-500- 0108 500lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17431 Load Cell,SPT 60048-1K- 0108 1000lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
