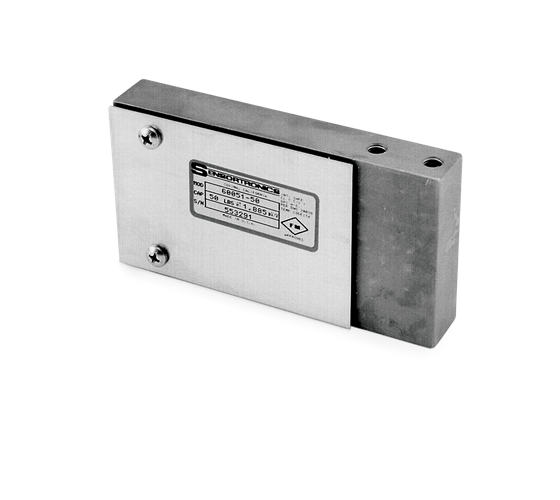

VPG Sensortronics 60051 Stainless Steel, Single Point Beam Load Cell

$0.00

Designed as a replacement for the NCI® Mark III in hostile environments. Stainless steel, moisture-resistant single-point cell. Complete with 10 ft (3.1 m) of load cell cable. 10 lb to 25 lb (4.5 kg to 11.3 kg) cells may be used with a base size of 8 in x 8 in (203.2 mm x 203.2 mm); 50 lb to 200 lb (22.7 kg to 90.7 kg) cells, with a base size of 12 in x 12 in (304.8 mm x 304.8 mm).

Download product PDF

Models

17432 Load Cell,SPT 60051-10 10lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17433 Load Cell,SPT 60051-15 15lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17434 Load Cell,SPT 60051-25 25lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17435 Load Cell,SPT 60051-50 50lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17436 Load Cell,SPT 60051-100 100lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
17437 Load Cell,SPT 60051-200 200lb 10ft 2mv/v 350 Ohm FM WW IP67 SST SENSTRS
