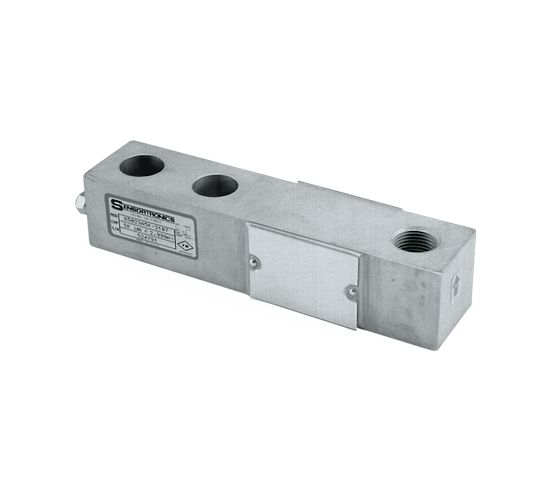

VPG Sensortronics 65023SS, Stainless Steel Single-Ended Beam Load Cell

$0.00

Designed for low-profile floor scales. Environmentally protected with stainless steel side plates. Stainless steel and a threaded hole for loading. Available in 250 lb (113.4 kg), 500 lb (226.8 kg), 15,000 lb (6,803.9 kg) and 20,000 lb (9,071.9 kg) capacities.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
349-355 ohms

Input Resistance:
343-357 ohms

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5- 10 V DC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
250 lb-500 lb=0.013 in (0.33 mm),
15,000 lb-20,000 lb=0.048 in-0.013 in (1.22 mm-0.33 mm)

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

46499 Load Cell,SEB 65023-250lb 0113 250lb 20ft Sensortronics 3mV/V 350 Ohm WW FM SST IP67
17188 Load Cell,SEB 65023-500- 0113 500lb 20ft 3mv/v 350 Ohm FM WW IP67 SST SENSTRS
17156 Load Cell,SEB 65023-15K- 0113 15,000lb 20ft SENSTRS 3mv/v 350 Ohm WW FM SST IP67
17160 Load Cell,SEB 65023-20K- 0113 20,000lb 20ft SENSTRS 3mv/v 350 Ohm WW FM SST IP67
