Home / Load Cells / Search By Type of Load Cell / Double-Ended Shear Beam / VPG Sensortronics 65040S Stainless Steel, Double-Ended Beam Load Cell

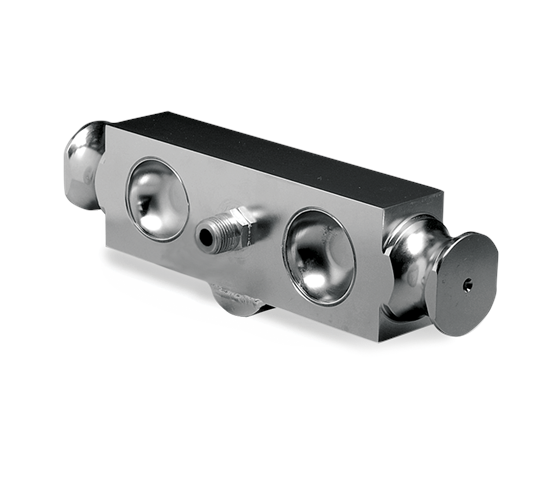

VPG Sensortronics 65040S Stainless Steel, Double-Ended Beam Load Cell $ 0.00
This model is an upgraded version of the Vishay Sensortronics 65040A, and is offered in stainless steel, with welded sealing. The center-supported, double ended beam design is compatible with Unilink/Translink mounts. The full stainless, welded-seal upgrade makes this model ideal for applications where harsh chemicals and washdown conditions exist. This model is available in capacities ranging from 25,000 lb to 75,000 lb (11,339.8 kg to 34,019 kg), and is provided with a standard 35 ft (10.6 m) of load cell cable.
Download product PDF
Models
45467 Load Cell,DEB 65040S25K 1000W 25000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45468 Load Cell,DEB 65040S40K 1000W 40000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45469 Load Cell,DEB 65040S50K 1000W 50000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45470 Load Cell,DEB 65040S60K 1000W 60000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45471 Load Cell,DEB 65040S75K 1000W 75000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
