Home / Load Cells / Search By Type of Load Cell / Single Point / VPG Tedea-Huntleigh 1130 Stainless Steel, Single Point Load Cell
VPG Tedea-Huntleigh 1130 Stainless Steel, Single Point Load Cell $ 0.00

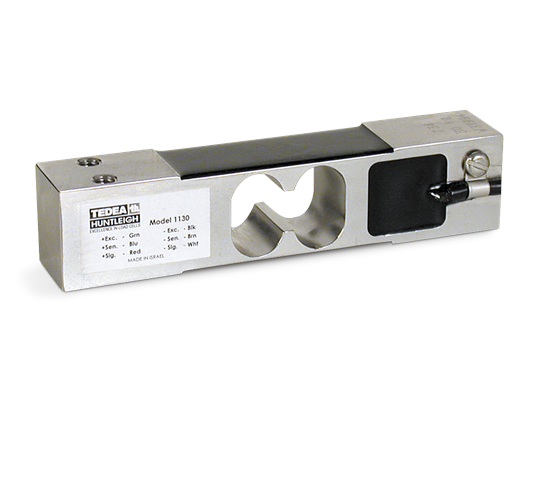

The Vishay Tedea-Huntleigh 1130 is a stainless steel, single-point load cell that is designed for high performance in harsh environments. This product is primarily designed for platform weighing but is cost-effective to make it an appropriate selection for numerous applications. Capacities range from 7.5 kg to 100 kg (16.6 lb to 220.5 lb). and is provided complete with 1.5m (3.3 ft), 3m (9.8 m) or 25 feet of load cell cable.
Download product PDF
Models
53485 Load Cell,SPT 1130-7.5kg 7.5kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM
112374 Load Cell, SPT 1130-10kg 10kg 1.5m 2mv/v 350 Ohm NTEP III 4S FM SST
53486 Load Cell,SPT 1130-15kg 15kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM
53487 Load Cell,SPT 1130-30kg 30kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM
53488 Load Cell,SPT 1130-50kg 50kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM
53490 Load Cell,SPT 1130-100kg 100kg 2mV/V 350 OHM SST 1.5m
