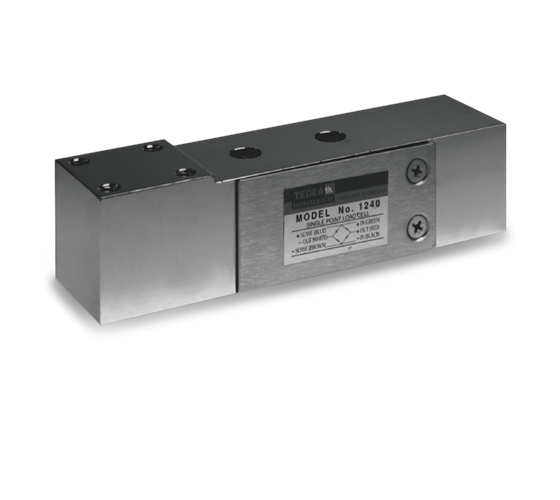

VPG Tedea-Huntleigh 1240 Stainless Steel, Single Point Load Cell

$0.00

The 1240 is a low-profile single point load cell that is compact in design, considering the 200 kg and 250 kg (441 lb and 551.3 lb) capacity range. This cell is ideally suited for light-industrial or people-weighing applications where overall deck height is a concern. The three-beam design makes the load cell less likely to be impacted by side forces and mounting imperfections. It features stainless steel construction and humidity-resistant coating for use in harsh environments with extreme temperatures. Each unit is provided with a standard 10 ft (3.1 m) cable.

Download product PDF

Models

47880 Load Cell,SPT 1240-200kg 3.1M TH 2mV/V 350 OHM FM SST IP64
47881 Load Cell,SPT 1240-250KG 3.1M TH 2mV/V 350 OHM FM SST IP64
