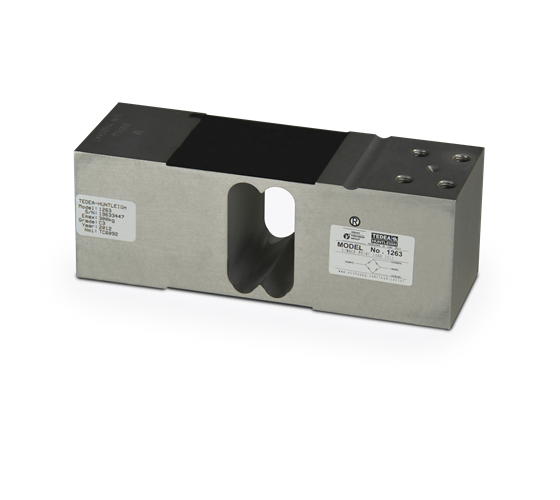

VPG Tedea-Huntleigh 1263 Aluminum, Single Point Load Cell

$0.00

The rugged construction of the VPG 1263 offers high immunity to side loads making it suitable for a wide array of applications like bench scales and process weighing. Its special humidity resistant protective coating helps assure long-term stability over the entire compensated range. It is constructed of high quality aluminum and comes standard with 1.5 meters of load cell cable. The 1263 is available in capacities from 50 kg to 635 kg (110.2 lb to 1,399.9 lb) and is OIML approved.

Download product PDF
Categories: ,

Models

157478 Load Cell, SPT 1263-50kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
157479 Load Cell, SPT 1263-100kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
157480 Load Cell, SPT 1263-150kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
157481 Load Cell, SPT 1263-200kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
157482 Load Cell, SPT 1263-250kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
157483 Load Cell, SPT 1263-300kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
157484 Load Cell, SPT 1263-500kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
157485 Load Cell, SPT 1263-635kg 1.5M TH 2 MV/V 350 Ohm OIML C3 Al
