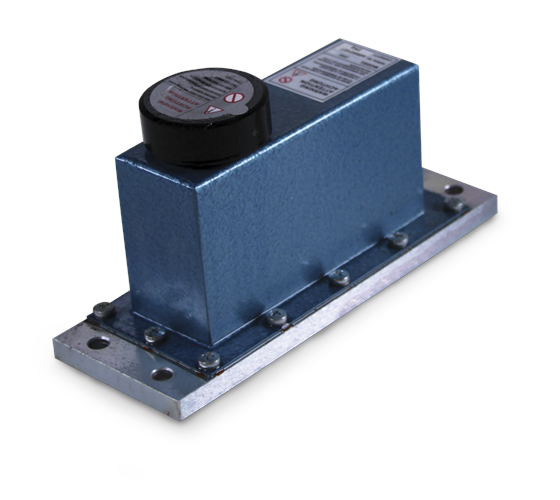

VPG Tedea-Huntleigh 240 Fluid Damped, Single Point Load Cell

$0.00

These load cells decrease weighing time and improve weighing accuracy in high-speed weighing applications. Since damping also protects the cells from shock and vibration, the load cell can endure harsh conditions, such as those encountered in repeated shock-loading applications. This also enables damped load cells to last longer than undamped load cells in any application. The cells are sealed, protecting them in washdown situations. Capacities range from 2 kg to 50 kg (4.4 lb to 110.2 lb).

Download product PDF
Categories: ,

Models

17560 Load Cell,SPT 240-5kg 5kg 10ft 2mv/v 350 Ohm NTEP Epoxy Class I Fluid Dampened TH
17561 Load Cell,SPT 240-7kg 7kg 10ft 2mv/v 350 Ohm NTEP Epoxy Class I Fluid Dampened TH
17562 Load Cell,SPT 240-10kg 10kg 10ft 2mv/v 350 Ohm NTEP Epoxy Class I Fluid Dampened TH
17563 Load Cell,SPT 240-15kg 15kg 10ft 2mv/v 350 Ohm NTEP Epoxy Class I Fluid Dampened TH
17564 Load Cell,SPT 240-20kg 20kg 10ft 2mv/v 350 Ohm NTEP Epoxy Class I Fluid Dampened TH
17565 Load Cell,SPT 240-30kg 30kg 10ft 2mv/v 350 Ohm NTEP Epoxy Class I Fluid Dampened TH
17566 Load Cell,SPT 240-50kg 50kg 10ft 2mv/v 350 Ohm NTEP Epoxy Class I Fluid Dampened TH
