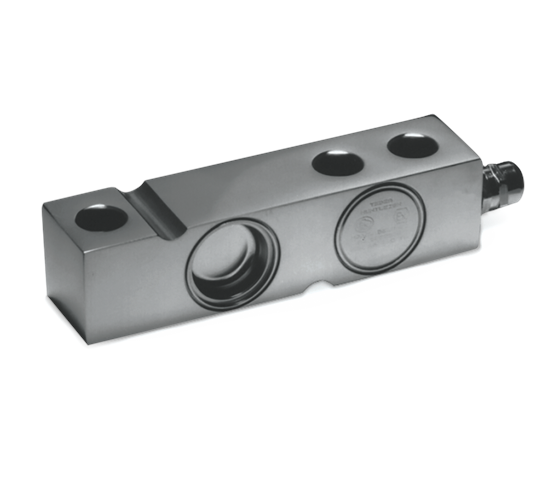

VPG Tedea-Huntleigh 3510-NTEP Stainless Steel, Single-Ended Beam Load Cell

$0.00

Low profile and all-welded sealing combined with high accuracy makes the 3510 ideally suited for low-profile platforms, weigh modules, tanks and silos. Hermetic sealing and polyurethane shielded cable enable it to function in harsh environments while maintaining its operating specifications. Capacities range from 1,000 lb to 4,000 lb (453.6 kg to 1,814.4 kg).

Download product PDF
Categories: ,

Models

36458 Load Cell,SEB 3510-1000lb 1000lb 16.4ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68
36459 Load Cell,SEB 3510-1.5K 1,500 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS
36460 Load Cell,SEB 3510-250010 1 2,500 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68
36461 Load Cell,SEB 3510-400010 1 4,000 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68
