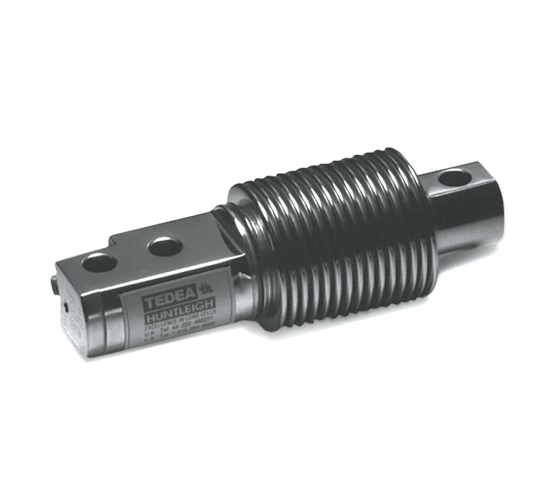

VPG Tedea-Huntleigh 355 Stainless Steel, Single-Ended Beam Load Cell

$0.00

Welded stainless steel construction, welded sealing and polyurethane shielded cable enables the 355 to function in harsh environments while maintaining its operating specifications. Suitable for low-profile platforms, weighing and packing machines, electromechanical conversions and general-purpose weighing applications. Capacities range from 5 kg to 500 kg (11.0 lb to 1,102.3 lb).

Download product PDF
Categories: ,

Models

30165 Load Cell,CLB 355-5KG 5KG 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
30166 Load Cell,CLB 355-10KG 10KG 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
30167 Load Cell,CLB 355-20KG 20KG 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
30168 Load Cell,CLB 355-50KG 50kg 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
30169 Load Cell,CLB 355-100KG 100kg 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
30170 Load Cell,CLB 355-200KG 200KG 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
30171 Load Cell,CLB 355-250KG 250KG 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
36463 Load Cell,CLB 355-500KG 500kg 3m 2mV/V TH 350 OHM NTEP III 4 S/III 5 M SST WS IP68 FM
