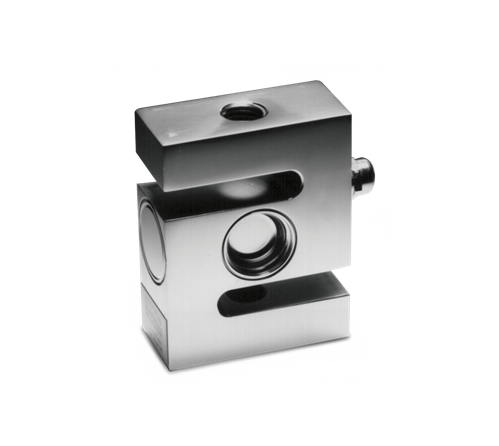

VPG Tedea-Huntleigh 620 Stainless Steel, S-Beam Load Cell

$0.00

Download product PDF
Categories: ,

Features

Ideally suited for harsh environments, lever conversions, hoppers/tanks, vibratory feeders, general purpose weighing and force measurement applications. The stainless steel, welded cavity design provides protection against water and corrosive materials. Capacities range from 500 to 2,000 kg.  Complete with 5 m of load cell cable.

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
5 m

 Cable Diameter:
0.220 in
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense

Warranty:
One-year limited

Approvals:
cFMus
NTEP
Ex (Available upon request)
OIML (Available upon request)

Options

36389 Load Cell,SBM 620-500kg 500kg 5M TH 2mV/V 350 OHM NTEP IP68 III 3 S/ III 5 M SST WS FM
36390 Load Cell,SBM 620-1000kg 1000kg 5m TH 2mV/V 350 OHM NTEP IP68 III 3 S/III 5 M SST WS FM
36391 Load Cell,SBM 620-2000kg 2000kg 5m TH 2mV/V 350 OHM NTEP IP68 III 3 S/III 5 M SST WS FM
