Weigh Beam Eye-Level

$0.00

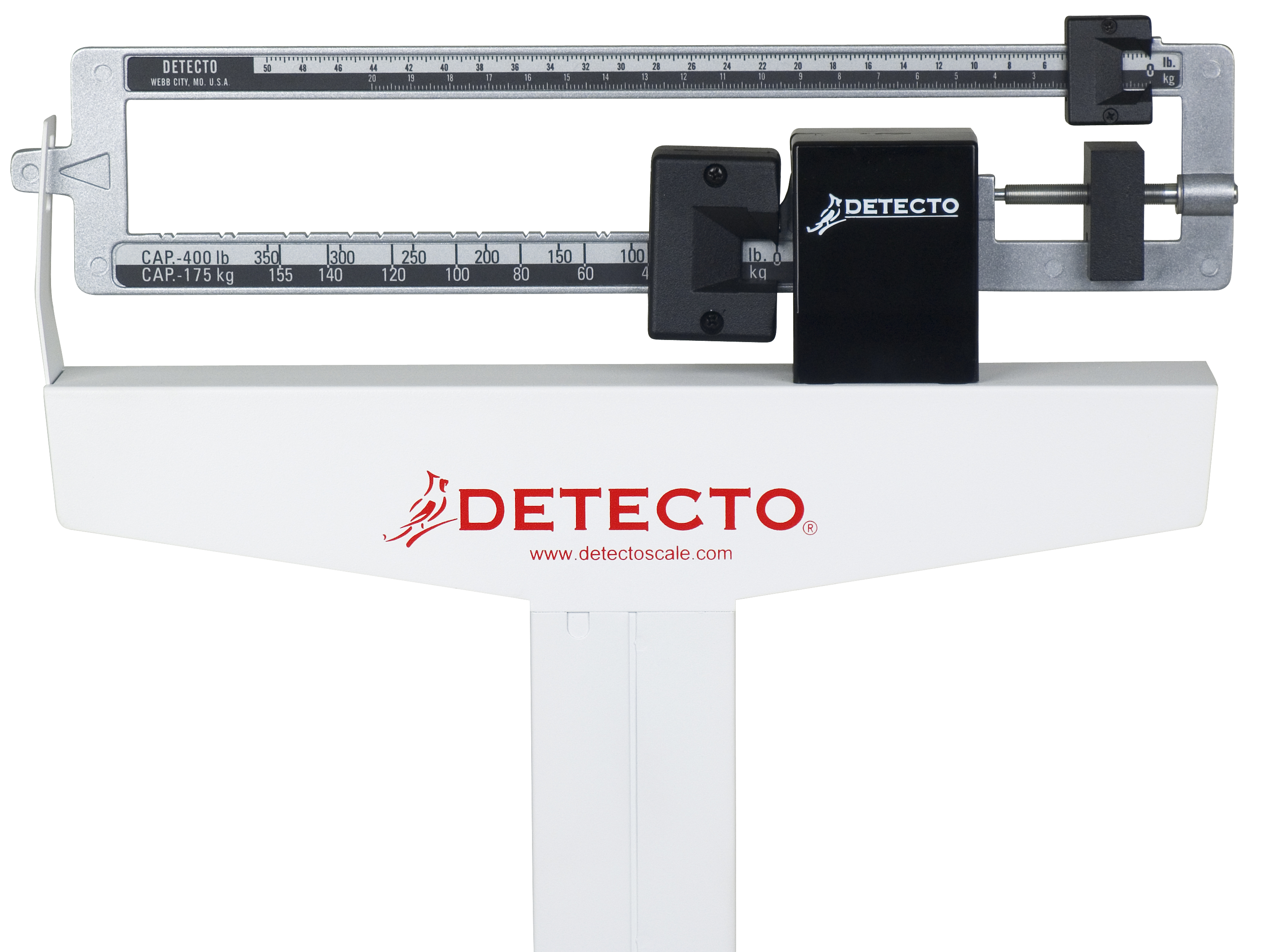

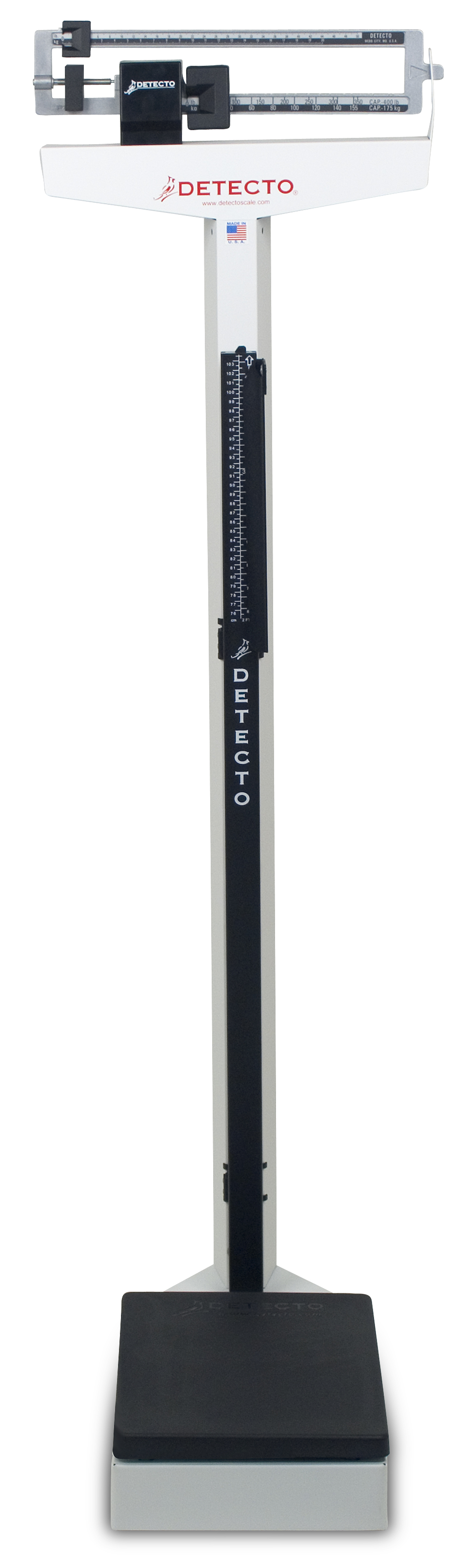

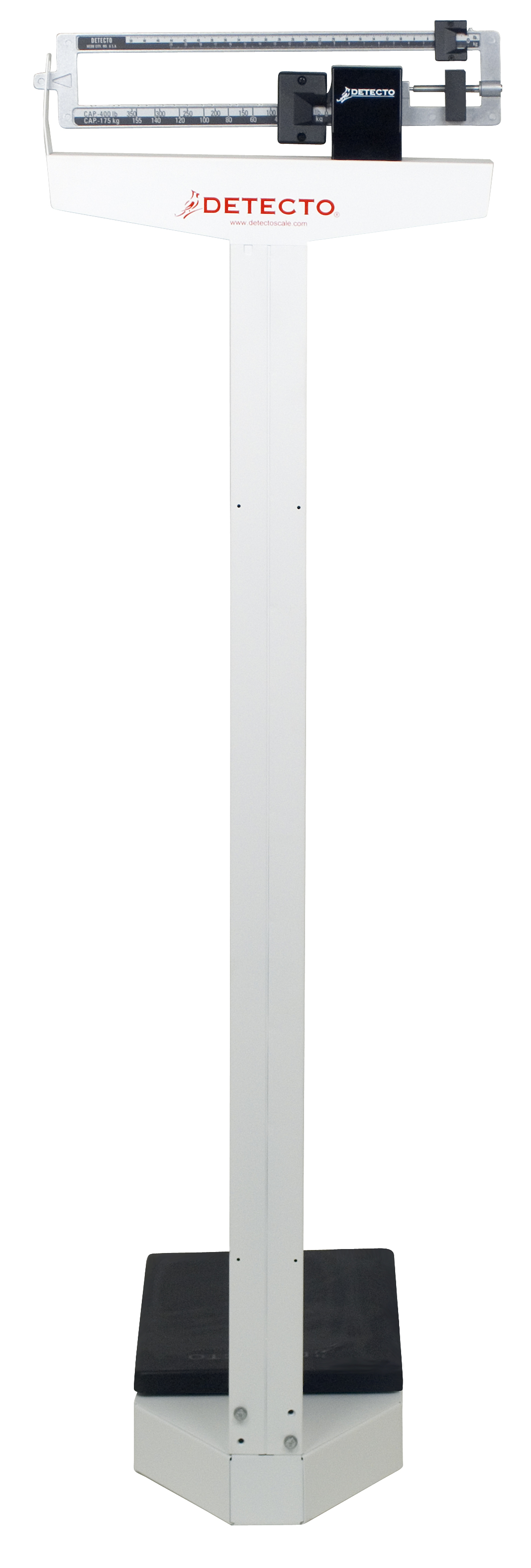

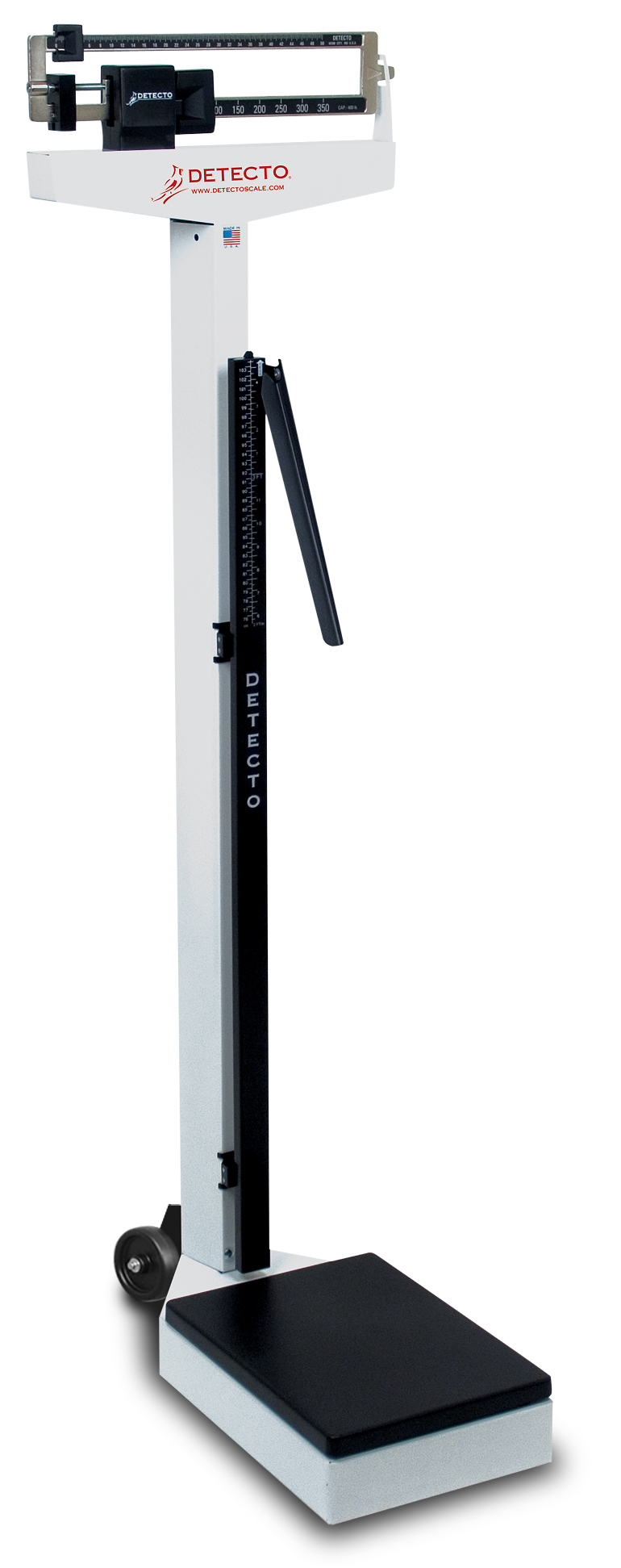

Detecto?s world-renowned eye-level mechanical weigh beam physician scales feature a heavy-duty solid stable 10.5 x 14.5 inch (27 x 37 cm) platform, a dual-reading die-cast weighbeam which may be read from either side of the scale. Featuring long-lasting, durable steel construction with an electrostatic powder paint finish for optimum quality. Capacity may be increased by using an optional counterweight. Scale is 59 inch (150 cm) high. Height rod, wheels and handpost features available. Detecto is the largest medical scale manufacturer in the United States.

Download product PDF
Categories: ,

Features

  • Die-Cast Weigh Beam May Be Read From Either Side
  • Electrostatic Powder Paint Finish
  • Height Rod Available
  • Sturdy Steel Construction

Specifications

Capacity: 400 lb x 4 oz , 180 kg x 100 g, 400 lb x 4 oz / 175 kg x 100 g
Scale Height: 59 in / 150 cm
Height Rod (on select models – 2392 excluded): 30 to 78 in / 76 to 200 cm – 1/4 in / 1/2 cm increments
Platform Size: 10.5 in W x 14.5 in D / 27 cm W x 37 cm D

Options

CW-30X Conversion Weight, Old Style, 350 lb TO 450 lb, Models 437, 438, 439, 448, 449
CW-39X Conversion Weight, Old Style, 350 lb TO 450 lb, Models 337, 338, 339, 349
CW-80X Conversion Weight, New Style, 180 kg To 220 kg
CW-9 Conversion Weight, New Style, 400 lb To 500 lb

Models

439 Physician?s Scale, Weigh Beam, 400 lb x 4 oz, Height Rod
2391 Physician?s Scale, Weighbeam, 180 kg x 100 g, Height Rod
437 Physician?s Scale, Weighbeam, 400 lb x 4 oz
2371 Physician?s Scale, Weighbeam, 180 kg x 100 g
438 Physician?s Scale, Weighbeam, 400 lb x 4 oz, Height Rod, Wheels
2381 Physician?s Scale, Weighbeam, 180 kg x 100 g, Height Rod, Wheels
448 Physician?s Scale, Weighbeam, 400 lb x 4 oz, Height Rod, Wheels, Handpost
449 Physician?s Scale, Weighbeam, 400 lb x 4 oz, Height Rod, Handpost
2491 Physician?s Scale, Weighbeam, 180 kg x 100 g, Height Rod, Handpost
339 Physician?s Scale, Weighbeam, 400 lb x 4 oz / 175 kg x 100 g, Height Rod
337 Physician?s Scale, Weighbeam, 400 lb x 4 oz / 175 kg x 100 g
338 Physician?s Scale, Weighbeam, 400 lb x 4 oz / 175 kg x 100 g, Wheels, Height Rod
349 Physician?s Scale, Weighbeam, 400 lb x 4 oz / 175 kg x 100 g, Height Rod, Handpost
