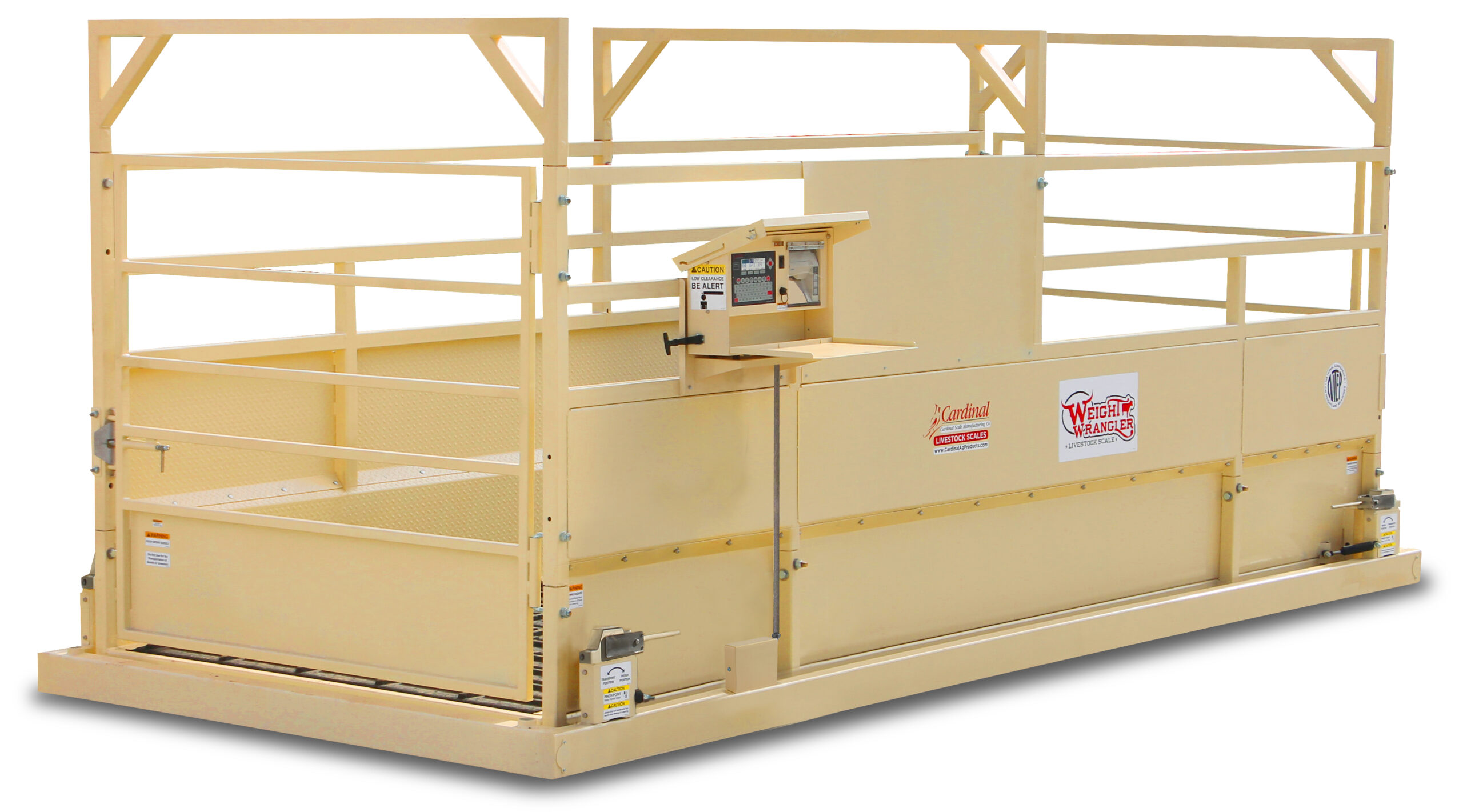

Cardinal Scale’s portable Weight Wrangler group animal scales provide a self-contained NTEP legal-for-trade weighing system that can be used on any firm surface with up to a 5% grade (maximum allowed by NTEP). The hoof-gripping rubberized component deck and steel cattle pen enclosure with dual swing gates are all suspended at four points within a portable base frame. The Weight Wrangler can weigh groups of cattle up to 15-20 head at a time (20,000 lb x 5 lb capacity). The scale includes a weight indicator, USB port to store transactions, and ticket printer. The mobile weighing center cabinet feature toolbox latches to properly secure the lids and doors.
High-Quality Composite Flooring for Livestock Stability and Assurance
Includes Lower Frame for Portability
Includes Mobile Weighing Center
Includes USB Port to Store Transactions
NTEP Legal for Trade
UV-Protected Baked-on Tan Powder Paint
Weigh Groups of Cattle up to 15-20 Head at a Time
Specifications
Capacity: Model LSP1513-MWC225P: 15,000 lb x 5 lb / Model LSP2018-MWC225P: 20,000 lb x 5 lb Overall Trailer Dimensions LSP1513-MWC225P: 14 ft 3 7/8 in L x 8 ft 7 1/8 in W x 8 ft 1 1/4 in H / 4.37 m L x 2.62 m W x 2.47 m H Overall Trailer Dimensions LSP2018-MWC225P: 19 ft 8 7/8 in L x 8 ft 7 1/8 in W x 8 ft 1 1/4 in H / 6.02 m L x 2.62 m W x 2.47 m H Includes: 225 weight indicator, CTP-1 ticket printer
Port: USB for transaction storage on portable USB drive
Tilt Angle: Up to 5% in any direction (maximum allowed by NTEP)
Paint: UV-protected, baked-on tan powder paint
Flooring: HIgh-quality rubberized non-slip composite flooring with predefined floor plank seams in the scale deck prohibit debris from compiling underneath
Digital Filtering: StableSENSE® digital filtering that filters the weight signal to produce a stable weight display in spite of motion on the scale platform due to animal movement
Country of Origin: USA
NTEP Certificate of Conformance: Certificate number 16-042 (legal for trade)
Accuracy Class: III / IIIL
Options: Collector Panel Mount Bow (qty. 1), Horse Risers, Dual Latch Gate
Power Requirements: 12V automotive type battery (battery is not included)
Deck Height: 6 inches when in weigh mode for easy step-in
Indicator LIvestock Functions: Shrink loss, current head count, gross weight, average weight, and previous and total head count, gross weight, and average weight
Inclinometer: Included with scale and detects scale angle to determine if angle is out of acceptable tolerance for weighing (blanks out if out of NTEP tolerance – up to 5% tilt angle)
Indicator Display: 240 x 64 pixel (5 in W x 1.33 in H / 127 mm W x 34 mm H) monochrome graphics LCD with white LED backlight and visible in direct sunlight
Keypad: 60 key color-coded keypad with QWERTY keys plus four soft keys and 13 function keys
Load Cells: NTEP stainless steel model ZX-10000 tension load cells

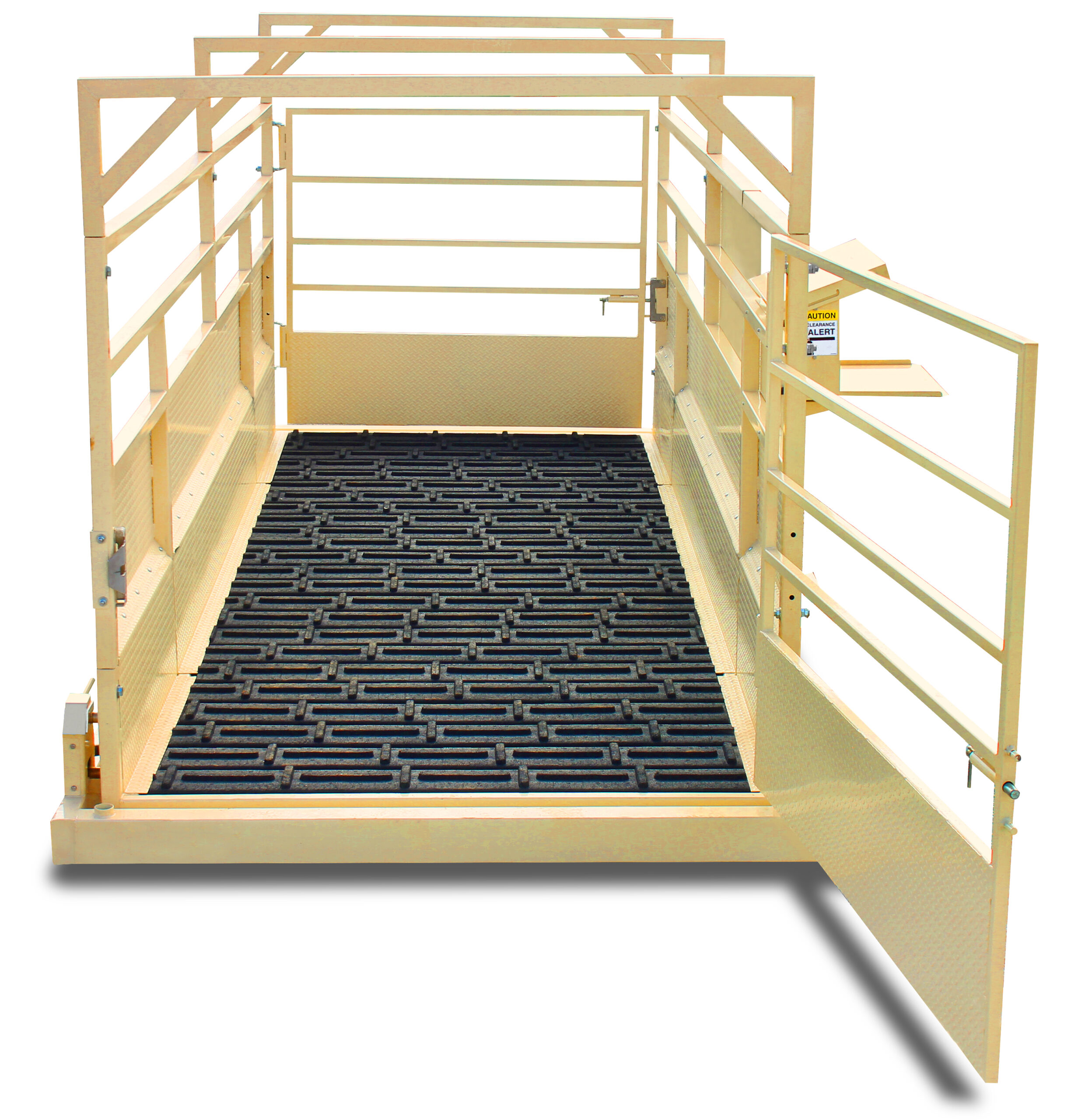

Gates: Two swing gates included
Printer: Cardinal Scale model CTP-1 dot matrix ticket printer included in mobile weigh center for NTEP legal-for-trade ticket printing of transactions
Shipping Weights: LSP2018-MWC225P: 5,027 lb; LSP1513-MWC225P: 4,188 lb
