WINENCL-P

$0.00

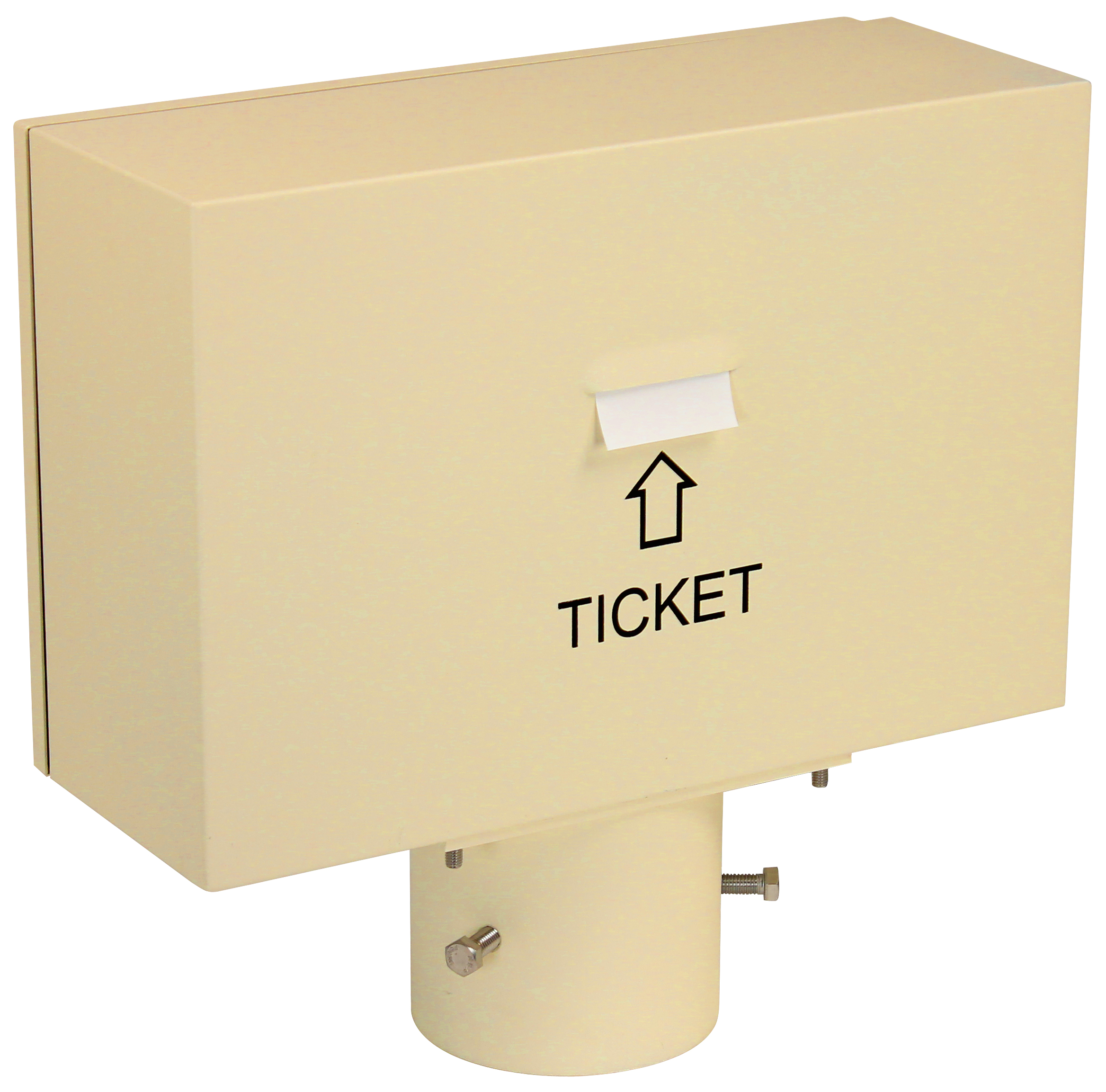

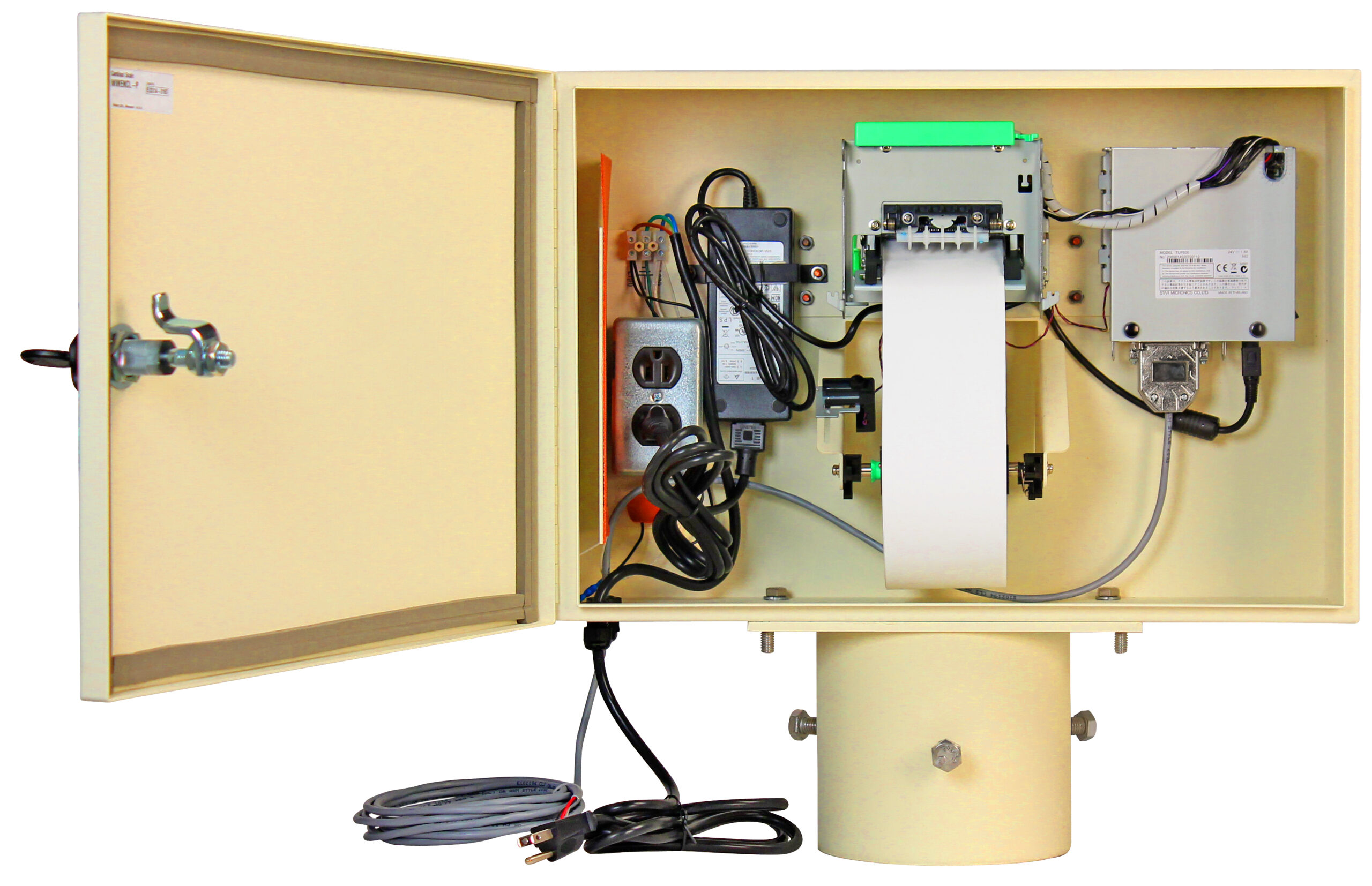

Cardinal Scale’s WINENCL-P thermal kiosk printer with steel enclosure and auto-cut bar provides weatherproof protection for your scale ticket printing. This high-quality, outdoor-grade printing solution accommodates a 6-inch diameter paper roll (included) and features a pole-mounting bracket bolted to the bottom of the printer cabinet, which can be removed for desktop applications. Internal access to the high-speed thermal cutbar tape printer is easy with the WINENCL-P’s lockable rear door. The internal quick release mechanism allows you to easily load fresh paper rolls. The innovative looping printer mechanism prevents paper jams by printing the receipt in full before providing it to the user. The internal heater with thermostat allows the WINENCL-P to be used in all weather conditions. RS232 serial connectivity is standard (USB, Ethernet, and Parallel available).

Download product PDF
Category:

Features

  • Easy to Refill Paper Rolls
  • High Speed Printing Up to 8.7 in – 220 mm Per Second
  • Internal Heater with Thermostat in Printer Cabinet
  • Lockable Outdoor-Grade Enclosure
  • Outdoor-Grade Steel Enclosure
  • Pole Mounting Bracket Included
  • RS-232 Cable and AC Adapter Included
  • Thermal Cutbar Tape Printer
  • Year-Round All-Weather Usage

Specifications

Enclosure Dimensions: 21 in/53 cm W x 8 in/20 cm D x 14 in/36 cm H (without mounting bracket) – 20 in/51 cm H including 6 in/15 cm H mounting bracket
Enclosure Construction: Mild steel with baked-on powder paint
Pole Mounting Bracket: Mounts up to 4 in/10 cm nominal pipe or 4.5 in/11 cm OD to 5.5 in/14 cm OD tubing (bracket may be unbolted and removed for desktop applications)
Print Method: Direct Thermal
Print Resolution: 203 dpi (8 dots/mm)
Print Speed: Up to 8.7 in / 220 mm per sec
Print Width: 1.4 – 3.1 in / 37 – 80 mm (adjustable)
Paper Width: 1.8 – 3.2 in / 45 – 82.5 mm (adjustable)
Paper Thickness: 0.0025 – 0.0059 in / 0.065 – 0.15 mm
Ticket Paper: 6 in / 15 cm diameter x 3.15 in / 8 cm wide paper roll (Cardinal Scale part no. 6600-1080)
Autocutter: Full-cut, guillotine style
Interface: RS232 serial standard (USB, Ethernet, and Parallel available upon request)
Power: 100-240V / 3A (power supply included)
Product Weight: 54 lb / 24 kg
Shipping Weight: 59 lb / 27 kg

Models

WINENCL-P Outdoor Enclosure, Printer Kiosk, Includes Pole-Mounting Bracket Call For Pricing
