Wireless Kits

$0.00

The Belt-Way wireless kit enables long-range wireless communication from a Belt-Way integrator to a remote display or Plant-Connect modem. The wireless kit decreases installation time and costs by eliminating long cable runs from the conveyor to a control tower or office. When properly installed, a wireless kit will provide a reliable connection with little ongoing maintenance. The wireless kit corresponds with the new style Belt-Way integrator.

Download product PDF
Categories: ,

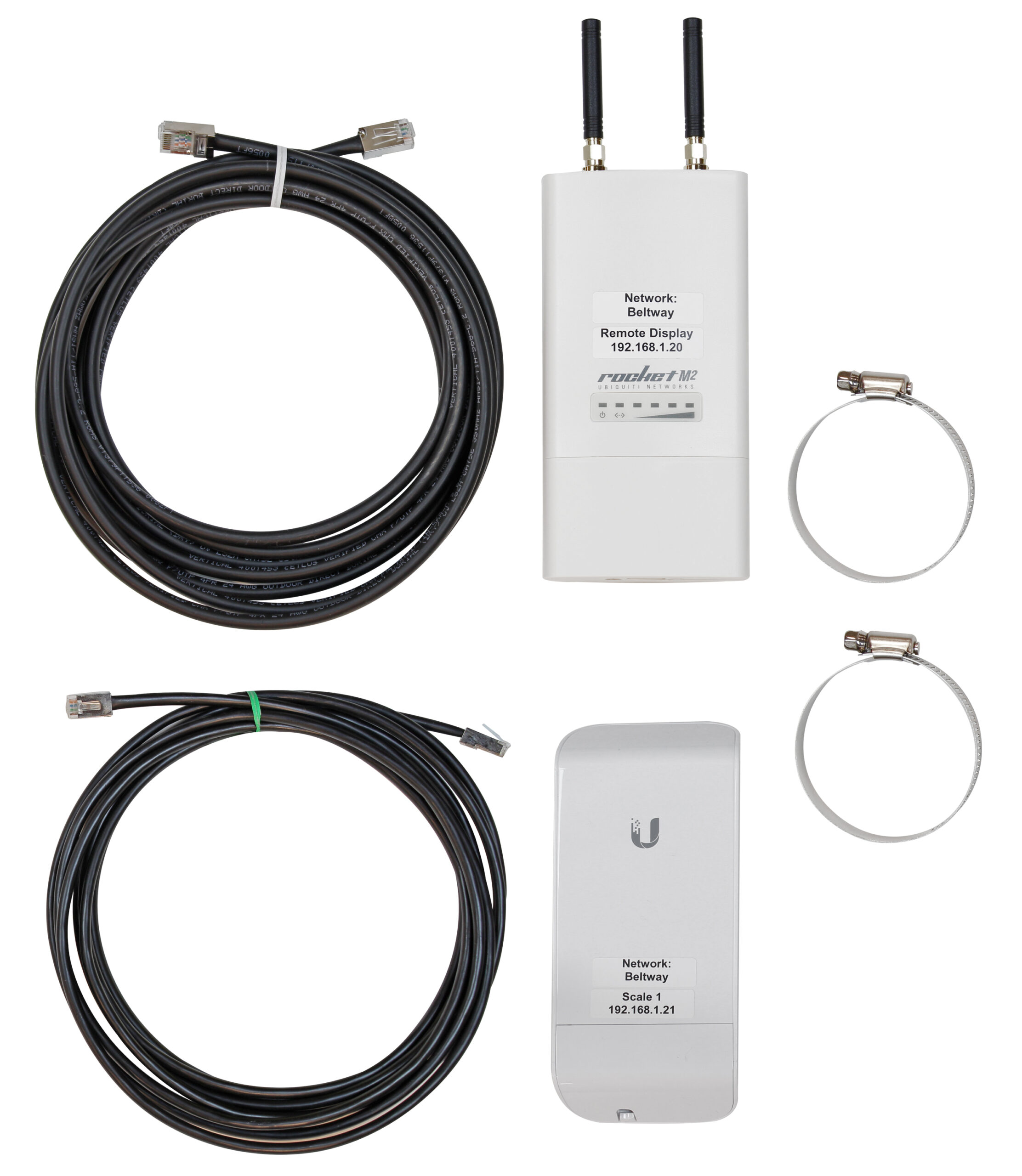

Features

  • Transmitter with Internal Antenna (BWWIRELESS-S or BWWIRELESS-S-LR
  • Transmitter with External Antennas (BWWIRELESS-AP)
  • Outdoor-Rated Ethernet Cables with Sealing Tape
  • Mounting Pipes and Hardware
  • 1 to 2 Mile Coverage

Specifications

Transmitter Frequency: 2.4 Ghz
Transmit Power: Up to 28 dBm
Environmental Protection Rating: IP65
Power: 12 – 24 DC power over Ethernet (Supplied by Scale Integrator or Remote Display)
Cable: 25, 50, or 75 ft Cat 5e UV rated weatherproof cable
Piping: One 48” galvanized mounting pipe
U-Bolts: Two 3/8” bolts
Hose Clamps: Two 2” clamps
IP Address: Each transmitter is preprogrammed with an IP address
Wireless Standard: 802.11 b/g/n

Options

BWWIRELESS-S BWWIRELESS-S
BWWIRELESS-AP BWWIRELESS-AP
BWWIRELESS-HDW BWWIRELESS MOUNTING KIT
