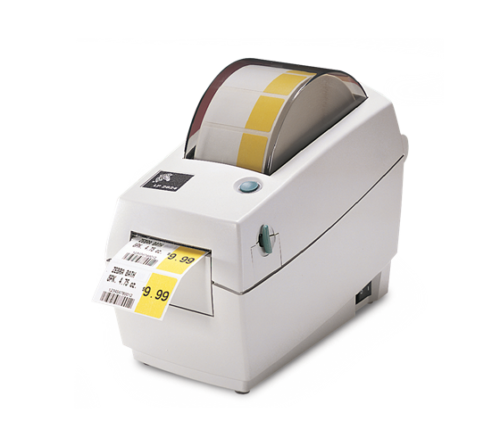

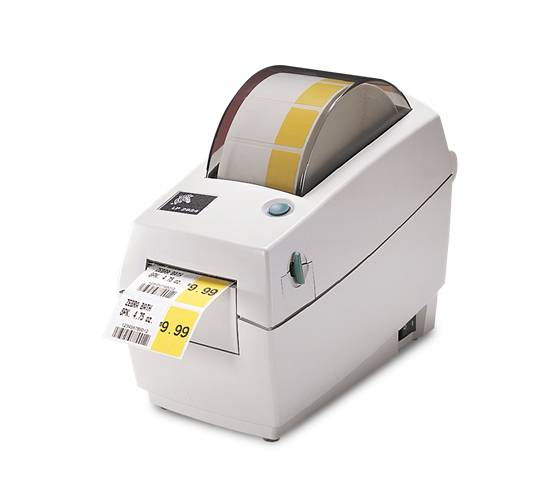

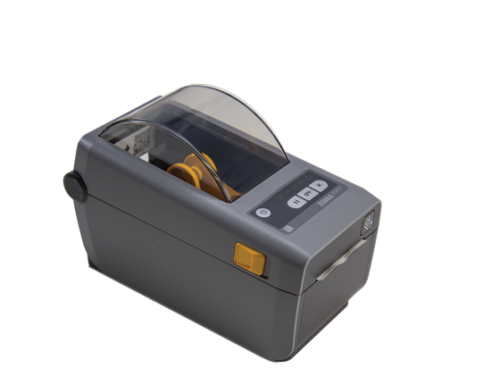

Zebra ZD 410/TLP 2824 Plus Thermal Printer

$0.00

The Zebra ZD 410/TLP 2824 Plus Thermal Printer has print speeds of 4 inches per second with direct thermal (ZD 410) and thermal transfer (TLP) printing of barcodes, text and graphics.

Download product PDF
Category:

Features

  • Print speeds of 4 in (102 mm) per second
  • 203 dpi print resolution (8 dots/mm)
  • Open ACCESSTM design for easy media loading
  • Direct thermal (ZD 410) and thermal transfer (TLP) printing of barcodes, text and graphics
  • Fully enclosed 5.0 in (127 mm) media compartment
  • Double-walled ABS case construction
  • EPL and ZPL programming language, co-resident
  • 32-bit RISC processor
  • 8 MB SDRAM, 4 MB flash memory
  • Zebra E3 print head energy control
  • Auto-calibration of media
  • Five resident expandable EPL2 fonts
  • Auto-switching 100 V and 240 V power supply
  • Linear and 2-D bar code symbologies
  • Transmissive and reflective media sensing
  • Head-up sensor
  • Tear-off mode
  • Certified Microsoft Windows drivers

Specifications

Resolution:
203 dpi (8 dpmm)

Print Length:
0.005 in to 39.0 in (0.125 mm to 991 mm)

Print Width:
0.005 in to 2.2 in (0.125 mm to 56 mm)

Print Speed:
2 in to 4 in?per second (ips)

Media Specifications:
Width: 1.00 in to 2.36 in (25 mm to 60 mm)

Communication Specifications:
Centronics parallel (option), USB, 10/100 Ethernet (option), RS-232 (TLP-standard, ZD 410-optional)

Label Length:?
Minimum: 0.38 in (9.7 mm)
1.0 in with optional cutter
Maximum 39 in (991 mm)
Inner Core: 1.0 in
Max roll diameter: 5 in
Sensing: gap, black line, notch
Type: roll-fed, fan fold, die cut or continuous with or without black mark, tag stock

Bar Codes:
Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, PLessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS), PDF417, MicroPDF417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Power:
100-240 VAC, 50-60 Hz, US power cord

Operating Temperature:
-40oF to 105oF (-40oC to 40.5oC)

Dimensions:
(L x W x H): 4.37 x 8.5 x 6.75 in
(111 x 216 x 171.5 mm)

Weight:
2.7 lb

Warranty:
One-year limited warranty

Options

Part #178856 Product DescriptionPrinter,Option ZD410 RS-232 Serial Card
Part #178857 Product DescriptionPrinter,Option ZD410 Ethernet, ZebraNet PrintServer Ethernet 10/100 Card
Part #38941 Product DescriptionPen,Head Cleaning Box of 12 TLP2642,LP2242,LP2642,TLP3642,LP3642,TLP2046,TLP2242 TLP2044 Eltron
Part #41276 Product DescriptionCable,DB9M To Blunt End Male DB9 to blunt end cable 5 Feet PINOUT: Black Pin-5, Red Pin-3, Green Pin-2 L
Part #79074 Product DescriptionCable,USB 6ft USB-A(male) to USB-B(male)
Part #64794 Product DescriptionCable,Null Modem DB9F/M DB9F To DB9M, 6 feet

Models

Part #?178855 Product DescriptionPrinter,Label ZD410 203dpi, Direct Thermal, USB, 2 Inch Print Width, US 120 VAC Cord
Part #?112875 Product DescriptionPrinter,Label TLP2824 Plus, 203dpi, Thermal Transfer, USB and Serial, US 120VAC power cord
